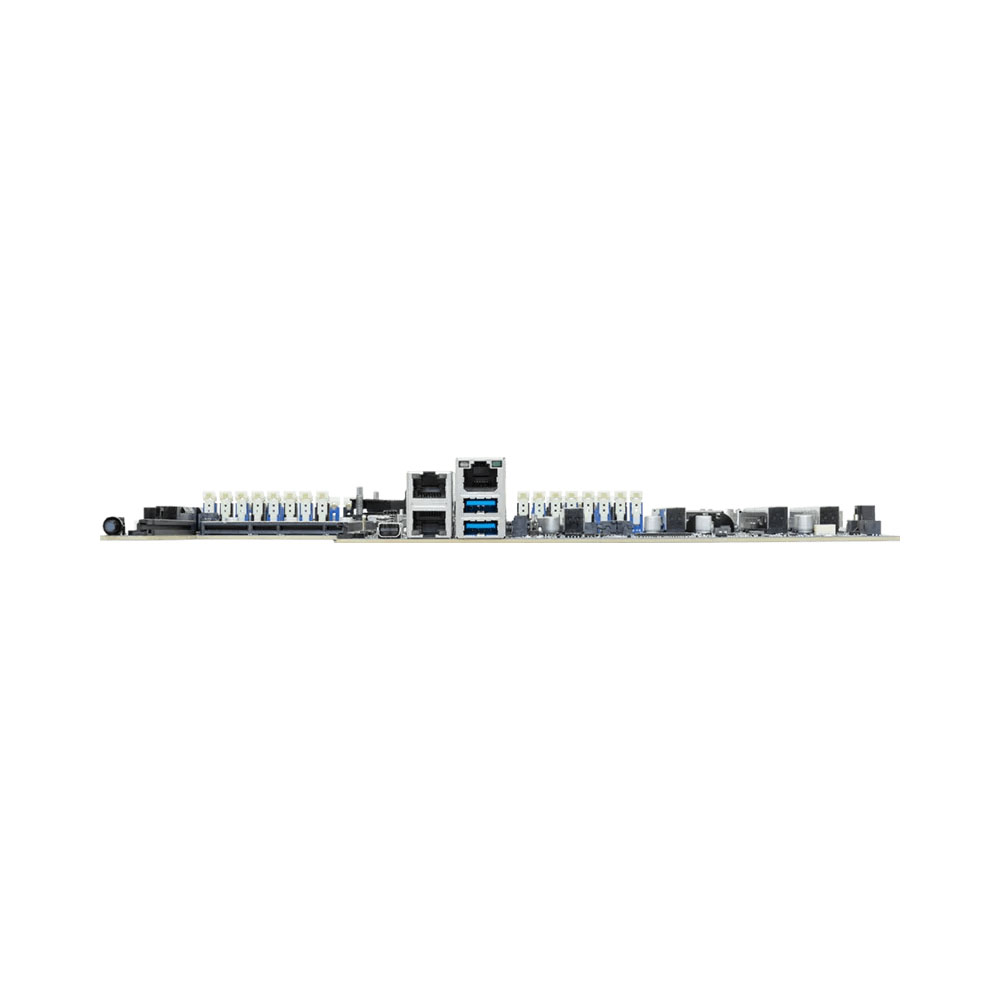

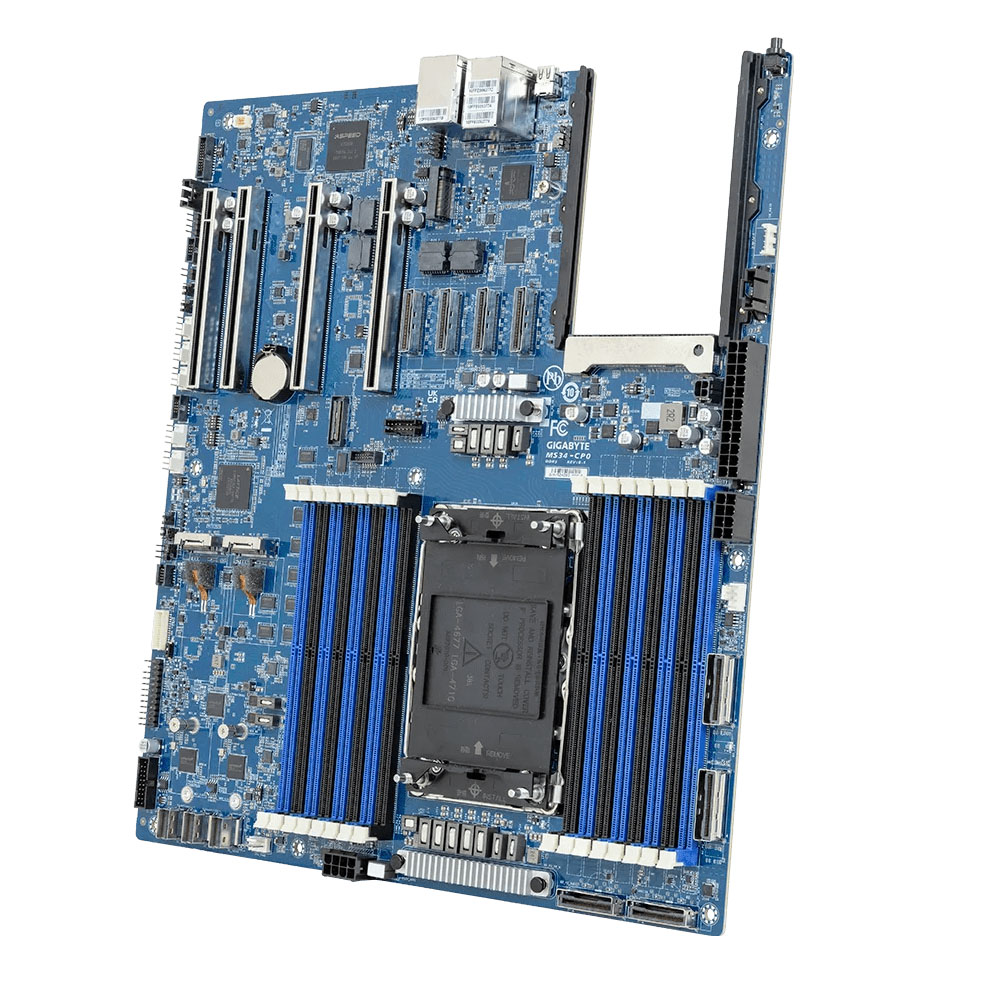

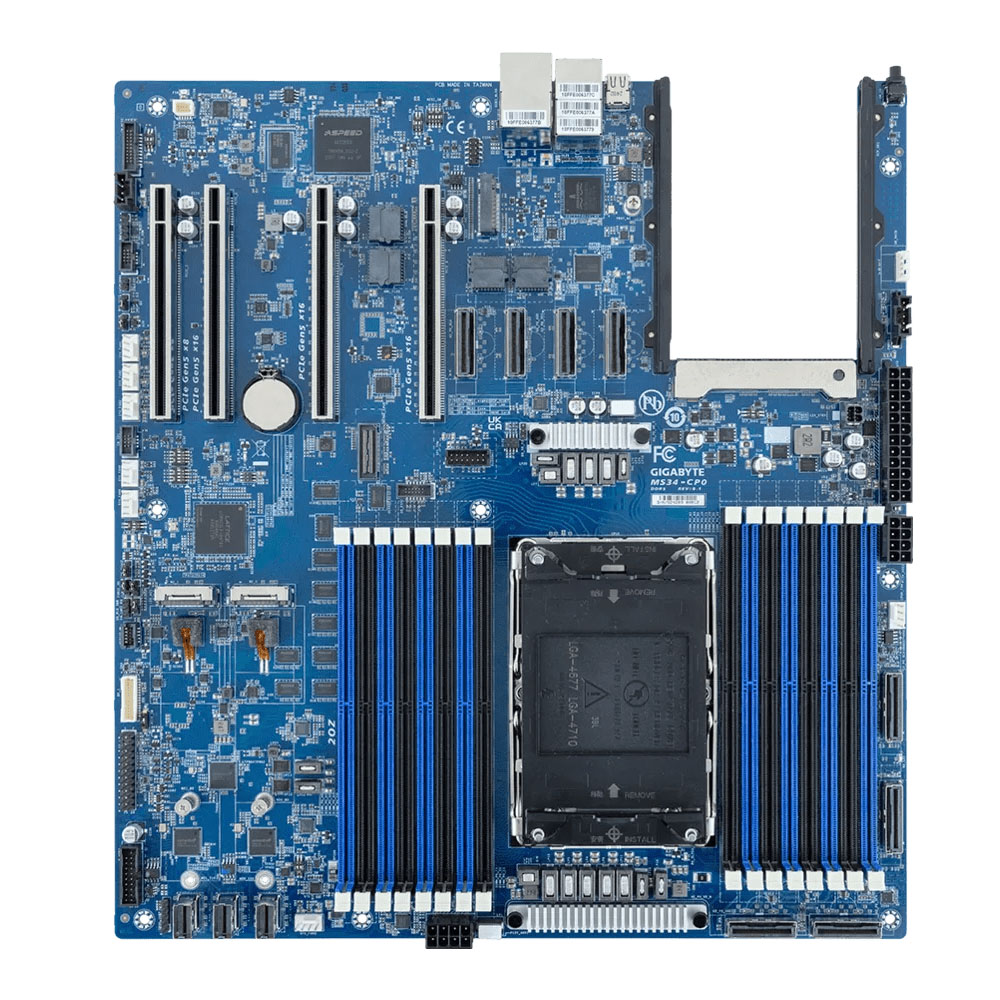

GIGABYTE MS34-CP0 Motherboard-6700/6500 Series Processors–E-ATX DP–350W
GIGABYTE MS34-CP0 Motherboard-6700/6500 Series Processors–E-ATX DP–350W - Image 2
GIGABYTE MS34-CP0 Motherboard-6700/6500 Series Processors–E-ATX DP–350W - Image 3
, , ,

GIGABYTE MS34-CP0 Motherboard-6700/6500 Series Processors–E-ATX DP–350W

  • Single Intel® Xeon® 6 Processors with 136 PCIe lanes, LGA 4710
  • 8-Channel DDR5 RDIMM / MRDIMM, 16 x DIMMs
  • Dual ROM Architecture
  • 2 x 1Gb/s LAN ports via Broadcom® BCM5720
  • 2 x MCIO 8i connectors with PCIe Gen5 x8 interface
  • 6 x MCIO 8i connectors with PCIe Gen5 x8 interface, require 136 PCIe lanes CPU
  • 3 x SlimSAS connectors for 12 x SATA 6Gb/s
  • 1 x M.2 slot with PCIe Gen5 x2 interface
  • 1 x M.2 slot with PCIe Gen5 x2 interface, shared with SATA
  • 4 x PCIe Gen5 x16 and x8 expansion slots
  • 1 x OCP NIC 3.0 PCIe Gen5 x16 slot

GIGABYTE MS34-CP0 Motherboard-6700/6500 Series Processors–E-ATX DP–350W

Min. Quantity – 5 Nos

Note: Below are the approximate and promotional prices. For the latest pricing and further details, please WhatsApp or call us at +91-8903657999.

₹240,000 ₹900,000

The GIGABYTE MS34-CP0 is a dual-socket E-ATX server motherboard engineered for the Intel Xeon D-6700 and D-6500 Series Processors. Purpose-built for data centers, edge computing, and enterprise applications, it provides a balance of compute density, expandability, and energy efficiency. With support for DDR4 ECC memory, PCIe expansion, and advanced management tools, the MS34-CP0 delivers stable performance within a 350W CPU TDP envelope, making it an ideal choice for networking, storage, and cloud deployments.

Key Features

  • Processor Support
    • Dual-socket support for Intel Xeon D-6700 / D-6500 Series Processors.
    • Integrated SoC design with compute, networking, and storage features on-chip.
    • Optimized for low-power, high-density edge and cloud workloads.
  • Form Factor
    • E-ATX (305 x 330mm) dual-processor board.
    • Designed for compact rackmount servers and edge deployments.
  • Memory
    • Supports DDR4 ECC RDIMM/LRDIMM for stability and reliability.
    • Up to 8 DIMM slots with high-capacity memory configurations.
    • ECC ensures mission-critical data accuracy.
  • Expansion Capability
    • Multiple PCIe Gen4 slots for networking, accelerators, or storage controllers.
    • Suitable for AI inference accelerators, GPUs, and high-speed NICs.
  • Storage Options
    • SATA 6Gb/s ports for HDD/SSD integration.
    • M.2 NVMe slots for high-speed SSD storage.
    • RAID support for redundancy and enterprise-class data protection.
  • Networking
    • Onboard multi-Gigabit Ethernet ports integrated with Xeon D SoC.
    • Expandable with PCIe NICs up to 25/40/100GbE for advanced networking.
  • Power & Efficiency
    • Optimized for 350W CPU TDP envelope, delivering efficiency in compact and edge deployments.
    • Energy-conscious design ensures lower OPEX in data centers.
  • Remote Management
    • Integrated BMC with IPMI 2.0 & Redfish API.
    • Provides remote monitoring of CPU, memory, power, storage, and system health.

Applications

  • Edge Computing – Compact, low-power, high-density computing for distributed environments.
  • Networking & Telecom – Ideal for SDN/NFV, 5G, and telecom infrastructure.
  • Enterprise Storage Nodes – Scalable storage configurations with NVMe and RAID support.
  • Cloud & Virtualization – Reliable platform for micro data centers and SaaS/PaaS/IaaS environments.
  • AI Inference & Analytics – Supports PCIe accelerators for real-time analytics and machine learning inference.
