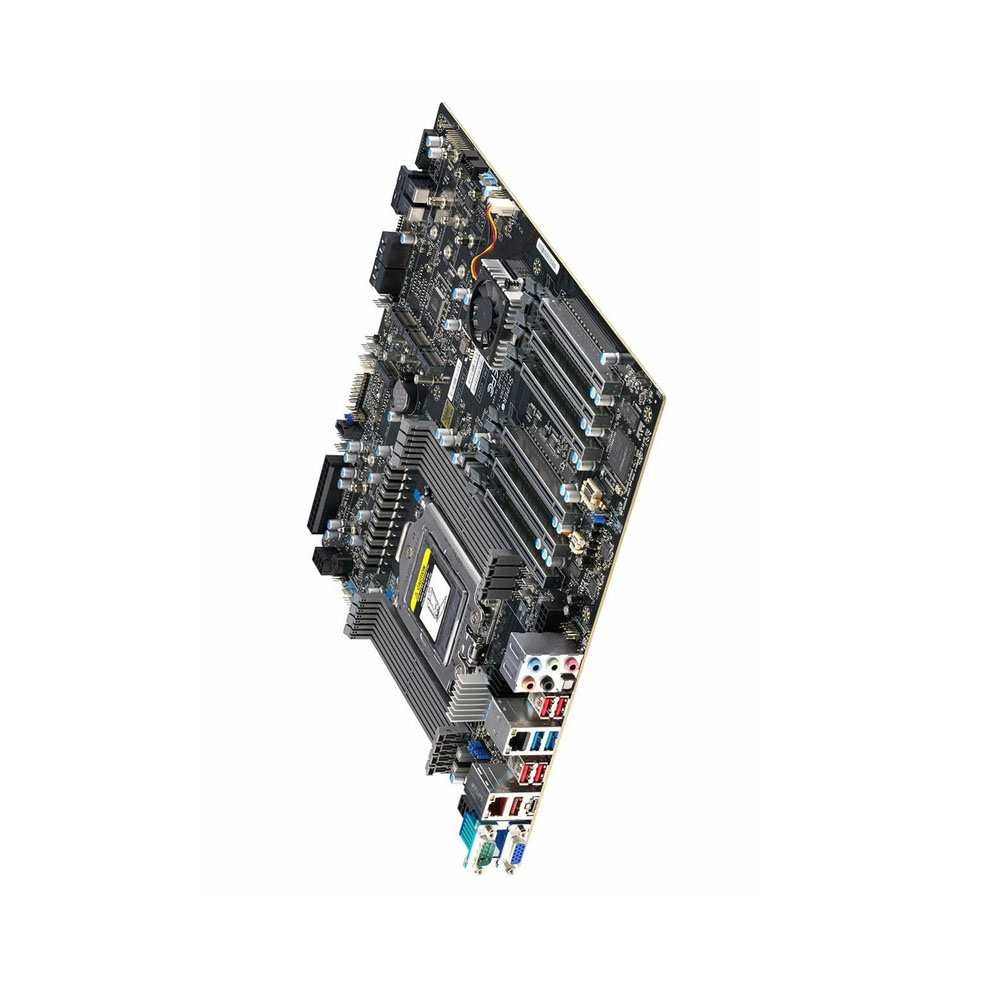

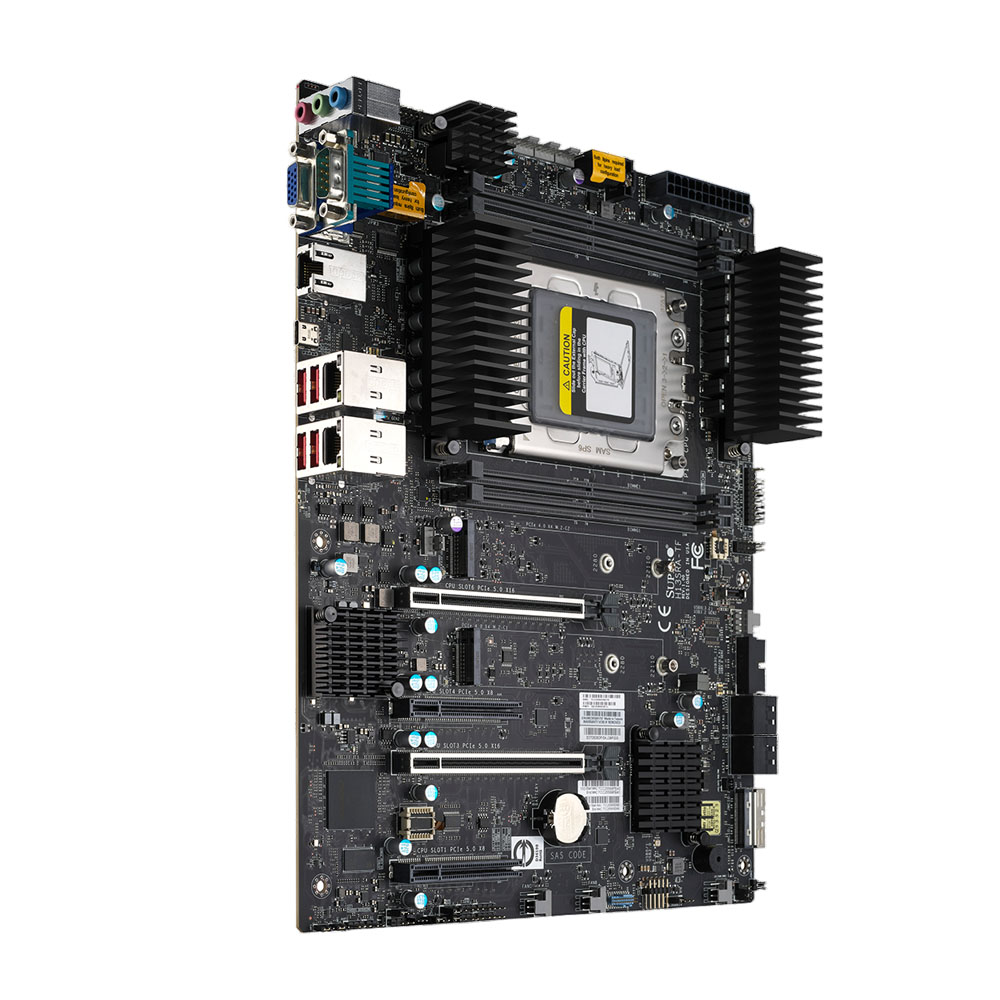

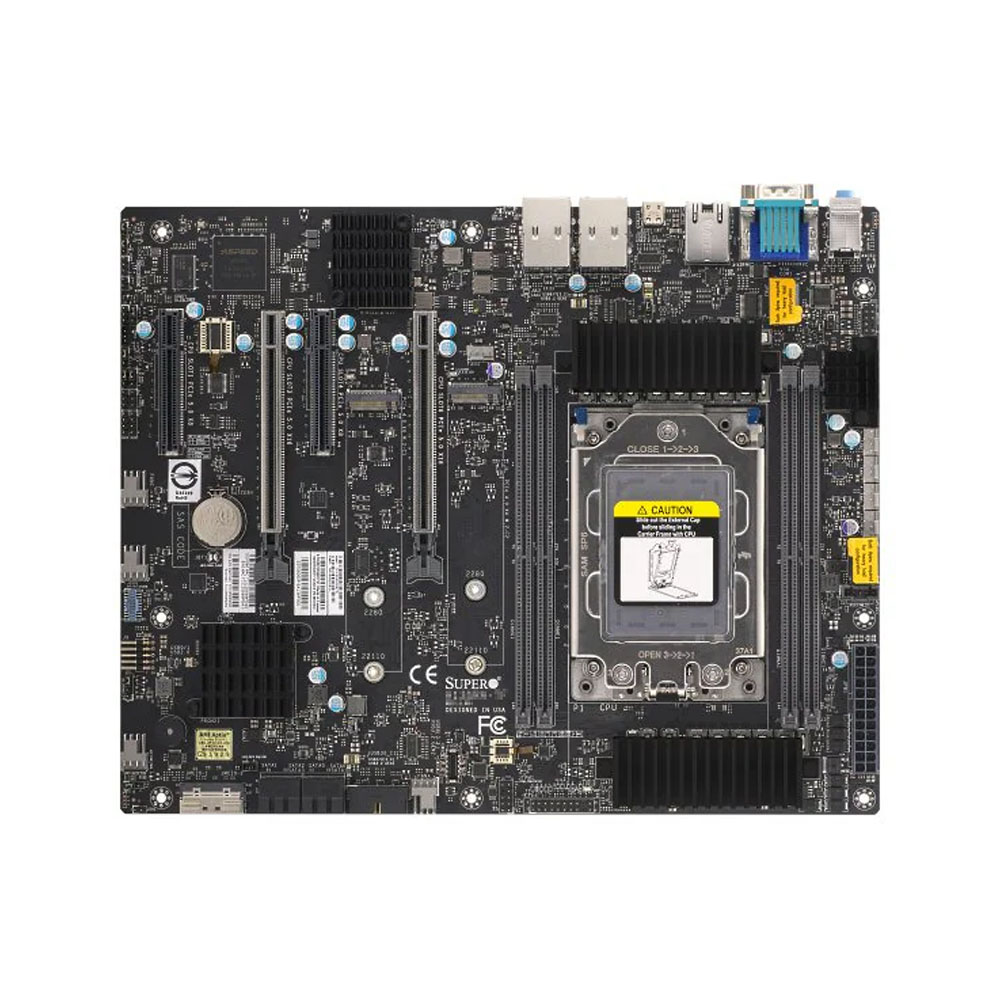

Supermicro H13SRA-F Workstation Motherboard, Single Socket sTR5 (LGA-4844), up to 350W TDP CPUs

The Supermicro H13SRA-F Workstation Motherboard is a high-performance single-socket platform designed for AMD Ryzen™ Threadripper™ PRO processors on the sTR5 (LGA-4844) socket, supporting CPUs with up to 350W TDP. Built for demanding professional workloads, it offers quad-channel DDR5 ECC memory support, PCIe Gen5 expansion, and enterprise-grade reliability, making it ideal for 3D rendering, CAD/CAE, content creation, AI development, and engineering workstations that require maximum compute power and stability.

 Features

• AMD Ryzen™ Threadripper™ PRO 9000/7000 WX-Series and Ryzen™ Threadripper™ 9000/7000 Series Processors
• Single socket sTR5, LGA-4844, Up to 350W TDP, Overclocking supported
• AMD TRX50
• Up to 1TB of memory with speeds of 6400+MT/s (1DPC) with overclocking support
• M.2 Interface: 2 PCIe 4.0 x4 (RAID 0, 1)M.2 Form Factor: 2280/22110M.2 Key: M-Socket
• 2 PCIe 5.0 x16, support 2 triple/dual/single-width GPU cards2 PCIe 5.0 x8, open rear
• Dual 1Gb LAN with Broadcom BCM5720
• 1 MCIO connector (PCIe Gen4 x8) to support 2 U.2 ports via cable for NVMe 2.5″ SSD drives (RAID 0,1)
• 1 Dedicated LAN for IPMI
• Overclocking supported on CPU and RDIMM
