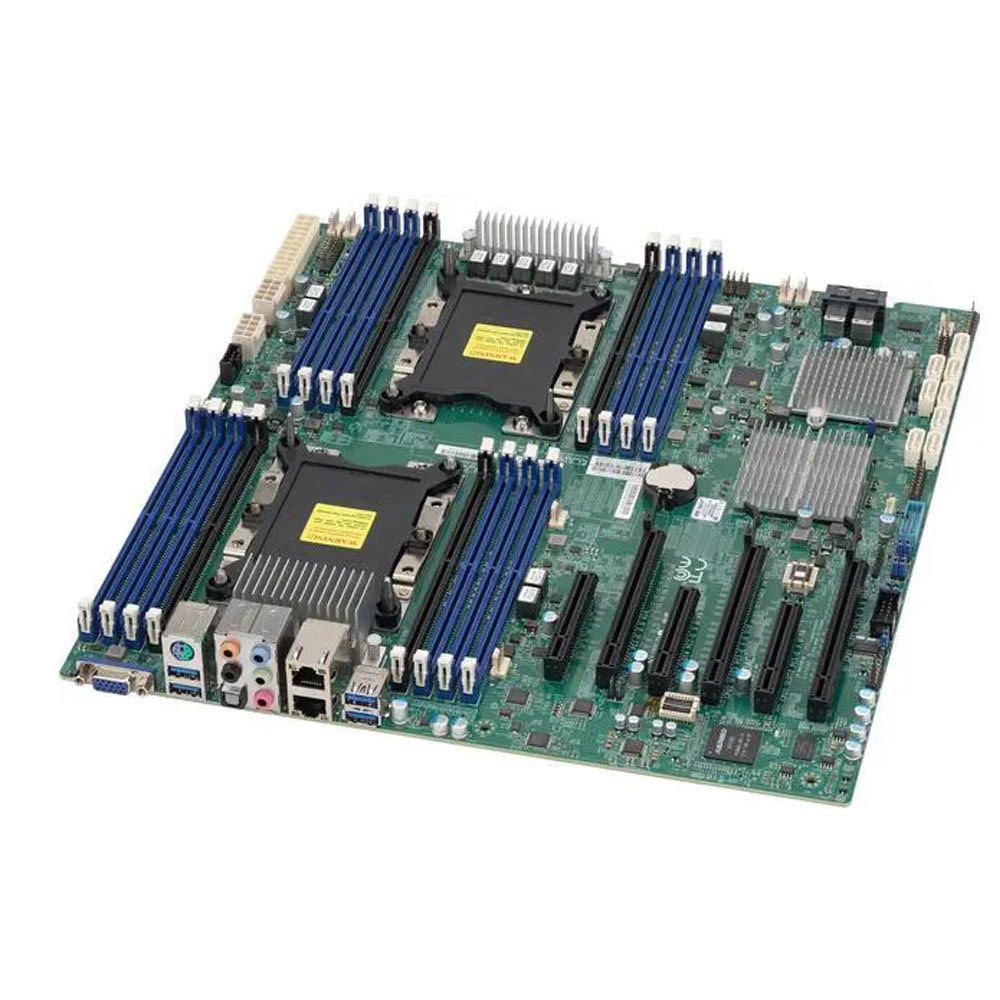

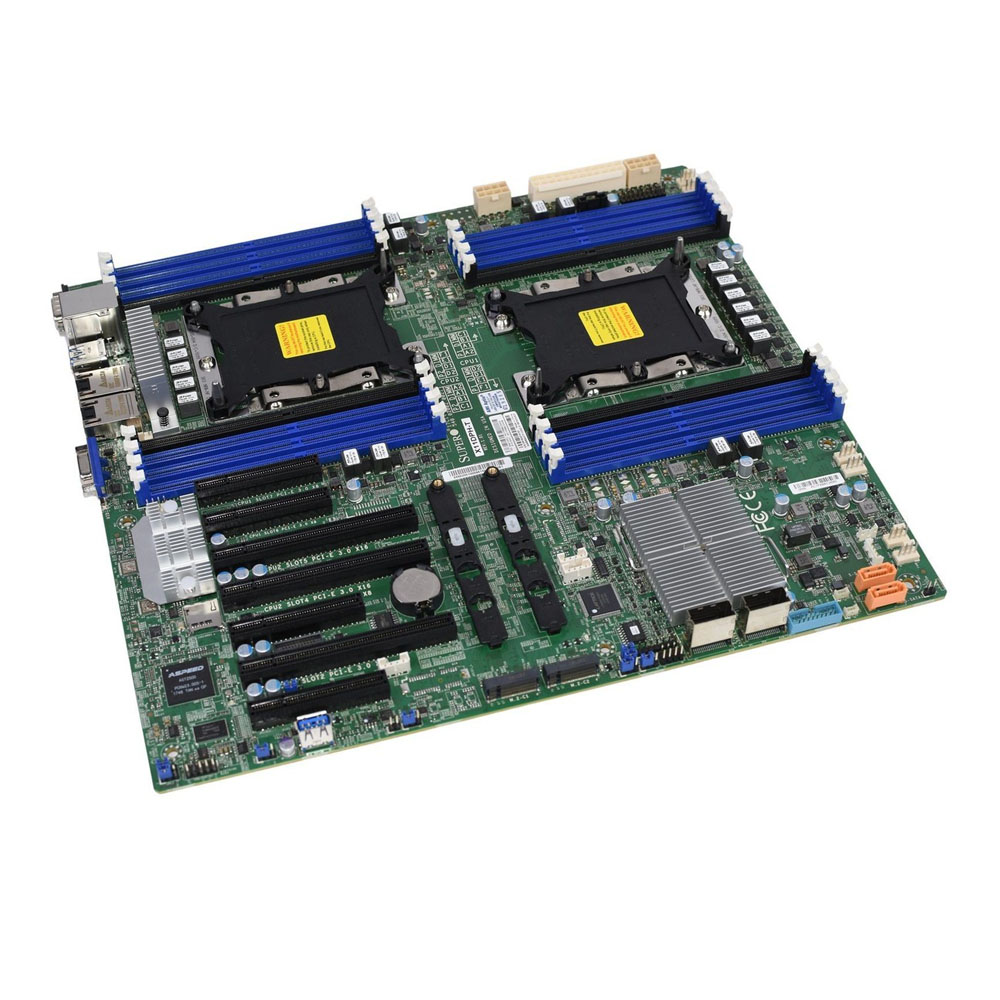

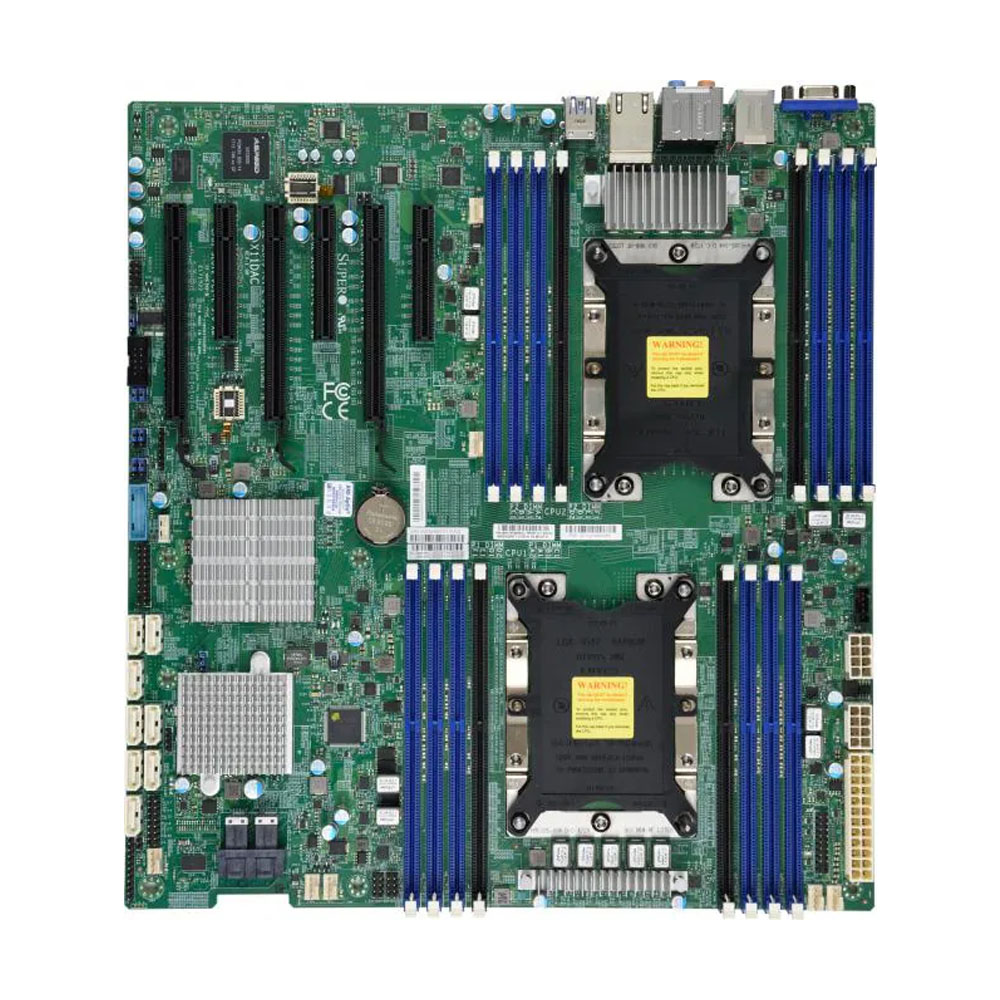

Supermicro X11DAC Workstation Motherboard, Dual Socket (LGA-3647), up to 205W TDP CPUs

The Supermicro X11DAC is a high-performance workstation motherboard featuring dual LGA-3647 sockets to support Intel® Xeon® Scalable processors with up to 205W TDP per CPU. Designed for professional creators, engineers, and researchers, it offers exceptional multi-core performance, large memory capacity, and PCIe expansion for GPUs and accelerators, making it an ideal platform for 3D rendering, CAD/CAE, simulations, and compute-intensive workloads with enterprise-grade reliability.

 Features

• 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors,
  Dual Socket LGA-3647 (Socket P) supported, CPU TDP supports Up to 205W TDP, 2 UPI up to 10.4 GT/s
• Intel® C621
• Up to 4TB 3DS ECC RDIMM, DDR4-2933MHz; Up to 4TB 3DS ECC LRDIMM, DDR4-2933MHz, in 16 DIMM slots
• 3 PCIe 3.0 x16 (in x16 slot),
  3 PCIe 3.0 x8
• Intel® C621 controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10
• Dual LAN with GbE from C621
• 1 VGA D-Sub Connector port
