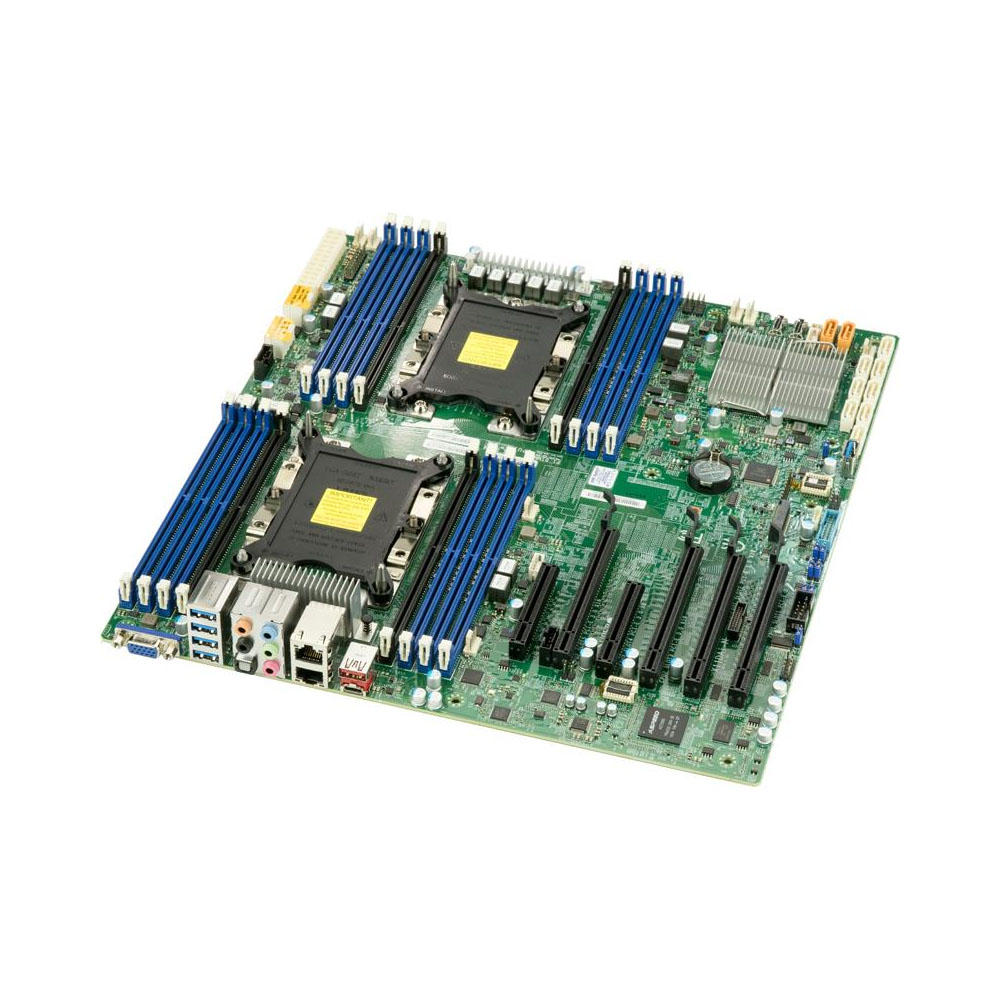

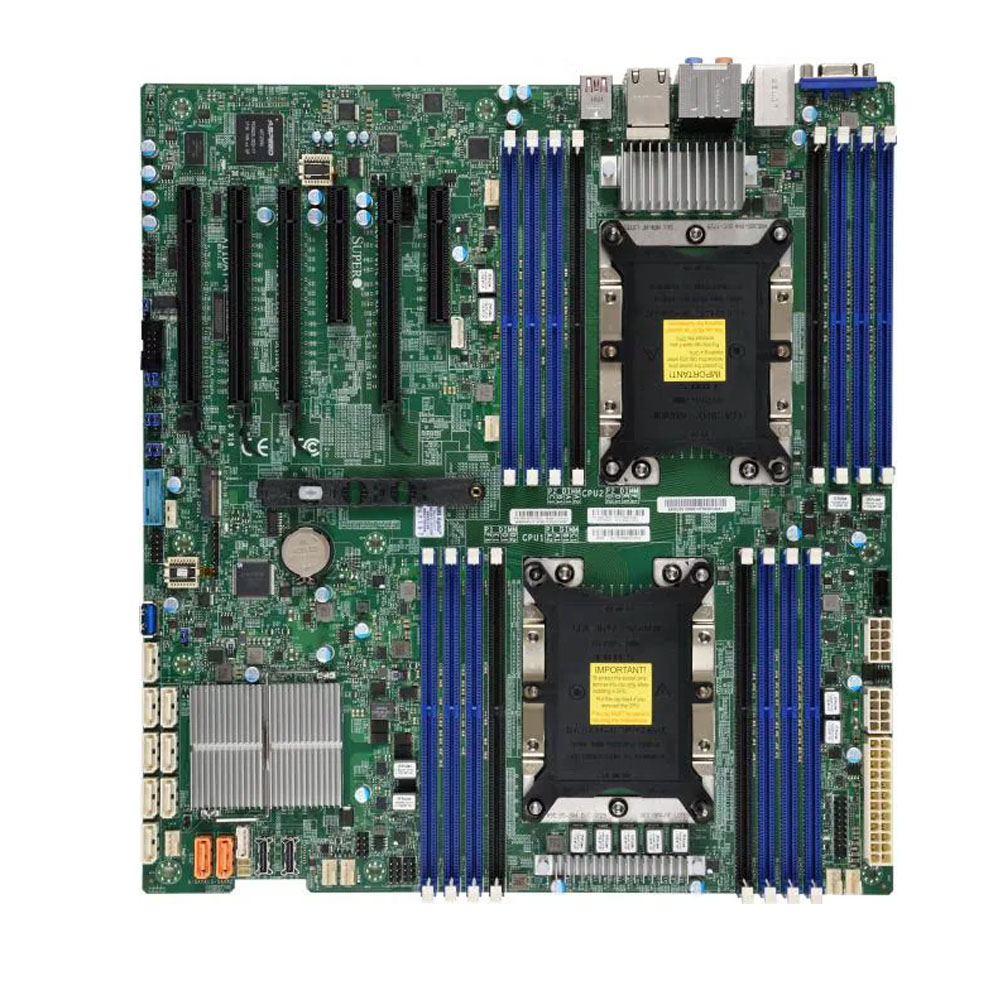

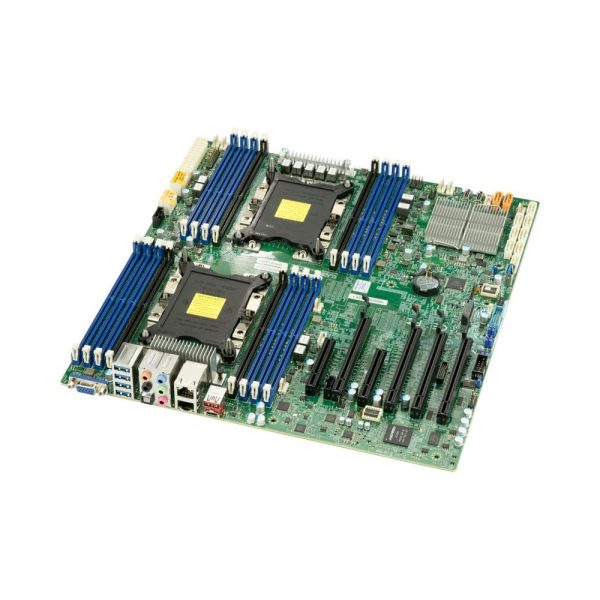

Supermicro X11DAi-N Workstation Motherboard, Dual Socket (LGA-3647), up to 205W TDP

The Supermicro X11DAi-N Workstation Motherboard is a high-performance dual-socket (LGA-3647) platform designed for Intel® Xeon® Scalable processors with support for up to 205W TDP per CPU. Engineered for professional workstations, it delivers outstanding compute density, robust DDR4 ECC memory support, and multiple PCIe expansion slots for GPUs, storage, and networking. With its reliability, scalability, and workstation-optimized design, the X11DAi-N is ideal for 3D rendering, CAD/CAE, content creation, and HPC applications.

 Features

• 1 VGA port
• • 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors
  • Dual Socket LGA-3647 (Socket P) supported, CPU TDP support Up to 205W TDP, 2 UPI up to 10.4 GT/s
• Intel® C621
• • Up to 4TB 3DS ECC RDIMM, DDR4-2933MHz; Up to 4TB 3DS ECC LRDIMM, DDR4-2933MHz, in 16 DIMM slots;
  • Up to 2TB Intel® Optane™ DC Persistent Memory in memory mode (Cascade Lake only).
• • 4 PCIe 3.0 x16,
  • 2 PCIe 3.0 x8,
  • 2 PCIe 3.0 NVMe x4 Internal Port(s)
  • M.2 Interface: PCIe 3.0 x4
  • M.2 Form Factor: 2260, 2280, 22110
  • M.2 Key: M-Key
• Intel® C621 controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10
• Dual LAN with GbE from C621
